AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

FEATURES

Edge-enhanced steel frame for added structural strength
Black anodized voice coil former for superior heat dissipation
Linear surround for precision cone movement
Complex FEA-designed high-efficiency motor
Paper fiber matrix cone with mica coating for optimized sound reproduction
Transparent thermal-polymer dust cap for superior fidelity
High-quality mounting hardware included

SPECIFICATIONS

Crossover Type Butterworth

Power 25W RMS / 50W Max

DC Resistance (Re). 2.45 ohms

Filter Type HP

Frequency Response 100-20k Hz

XO Frequency 250 Hz

BP Frequency Range 200-4k Hz

Slope (Octave) -6 dB

Midrange Voice Coil Diameter 20 mm

IN THE BOX: (2) PNW-275, Manual, Warranty

DIMENSIONS

Overall Dimensions: 3.74 in/ 95 mm
Overall Diameter(w/o Metal bracket): 2.83 in / 72 mm
Cut Out Diameter: 2.63 in/ 67 mm
Mounting Depth: 1.37 in/ 35 mm
Mounting Height (w/o Grille): 0.05 in / 1.5 mm
Mounting Height (w/ Grille): 0.48 in / 12.4 mm
Motor Diameter (w/ Cover): 2.36 in / 60 mm
Grille Overall Diameter: 3.42 in / 87 mm

California Proposition 65

To our California customers: Please view your Proposition 65 warning here.

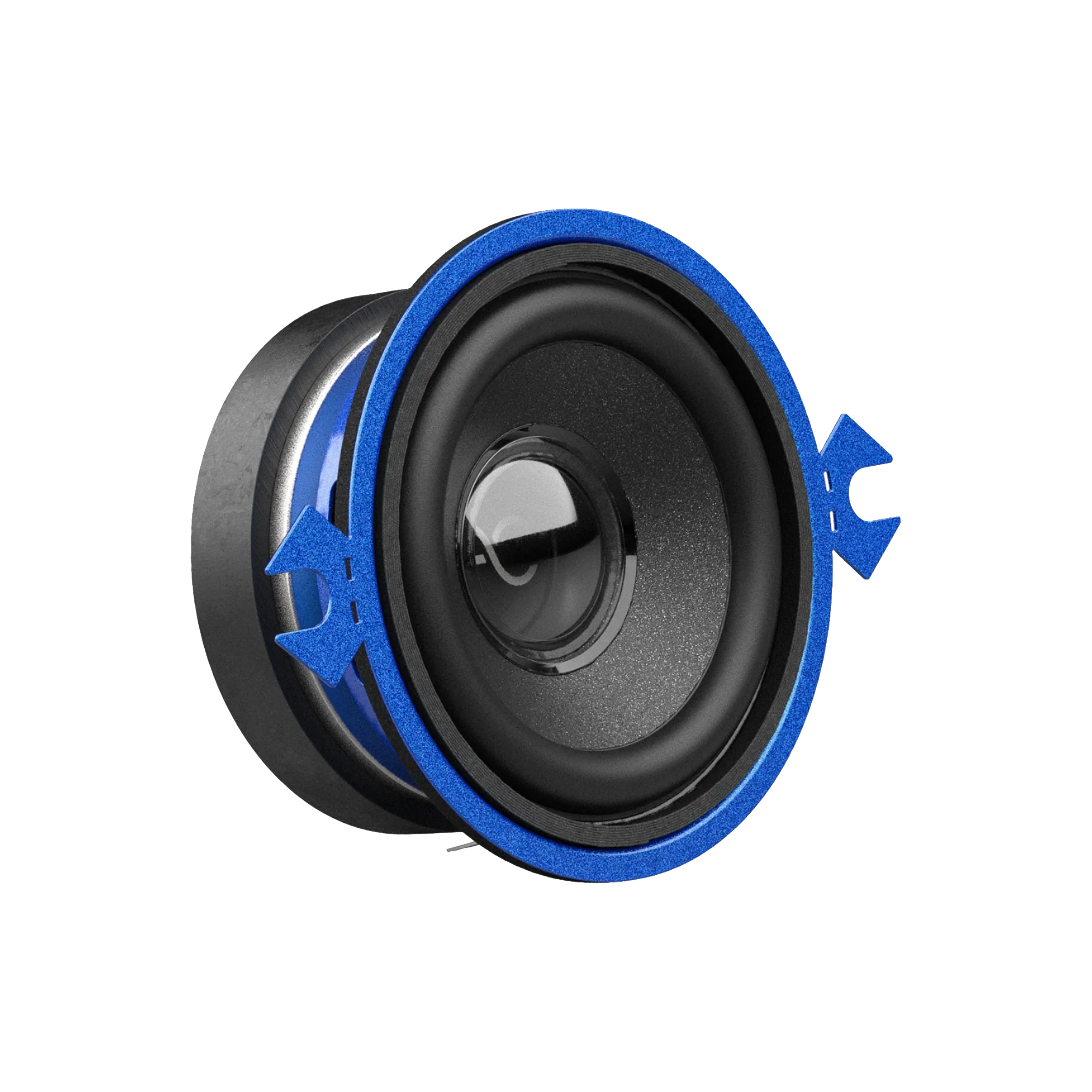

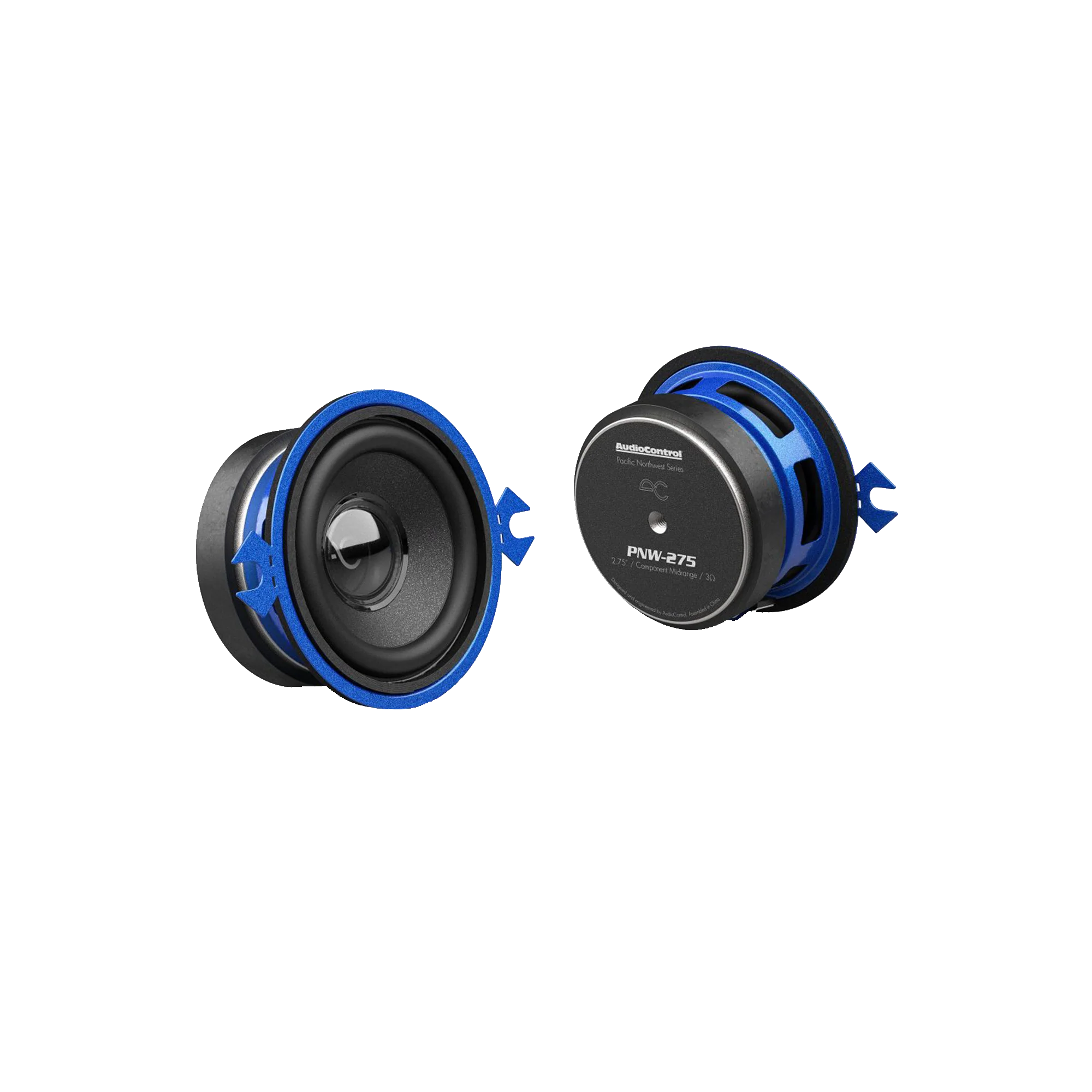

PNW-275 2.75" Component Midrange Speakers, 25W RMS, 3 Ohms (Pair)
