Take your audio experience to the next level with the PNW-1 high-fidelity tweeters from AudioControl! The PNW-1 features a hybrid silk dome tweeter, silk dome diaphragm and aluminum housing so you can experience accurate sound reproduction without distortion.

The detachable housing and versatile mounting accessories simplify installation, accommodating various applications seamlessly. The included in-line high-pass filters ensure only the desired frequencies reach the tweeter to maximize your sound and minimize distortion.

Pair PNW-1 tweeters with any of the AudioControl PNW speaker line-up for a truly immersive audio experience!

The tweeters are designed to provide an immersive audio experience with accurate sound reproduction and minimal distortion.
Easy installation is facilitated by the detachable housing assembly and multiple mounting accessories, making them suitable for various applications.
In-line high-pass filters are included to optimize sound by allowing only the desired frequencies to reach the tweeter.
Compatibility: The tweeters can be paired with any of the AudioControl PNW speaker lineup for a comprehensive audio setup.

FEATURES

Diaphragm: High-Fidelity silk dome diaphragm for accurate sound reproduction.
Housing: Precision Machined Aluminum Housing for durability and quality.
Sonic Damping: Embedded Sonic Damping Pad for improved audio performance.
Magnet: Neodymium Magnet for enhanced efficiency and compact design.
Assembly: Detachable assembly for OE (Original Equipment) applications.
Frequency Response: Rear dampened hybrid silk dome tweeter for extended frequency response.
Mounting: Multiple mounting accessories included for easy installation.
Filters: Included in-line high-pass filters to ensure only desired frequencies reach the tweeter, minimizing distortion.
Umbrella not included

SPECIFICATIONS

DC Resistance (Re). 2.3 Ohms

Power 100W RMS / 125W Max

Nominal Impedance (Z) 3 Ohms

Resonance Freq. (Fs) 1.621 kHz

Mechanical Q Factor (Qms) 6.92

Electrical Q Factor (Qes) 2.3091

Total Q Factor (Qts) 1.7314

Frequency Response 1k-20kHz

Tweeter Voice Coil Diameter 25 mm

IN THE BOX: (2) PNW-1, Manual, Warranty

IN-LINE CROSSOVER SPECIFICATIONS

Crossover Type 1st Order Butterworth

Crossover Frequency 3.5 kHz HP

Slope (Octave) -6 dB

DIMENSIONS

Overall Diameter (w Grille): 2.13 in/ 54 mm
Cut Out Diameter: 1.85 in/ 47 mm
Mounting Depth: 0.63 in/ 16 mm

California Proposition 65

To our California customers: Please view your Proposition 65 warning here.

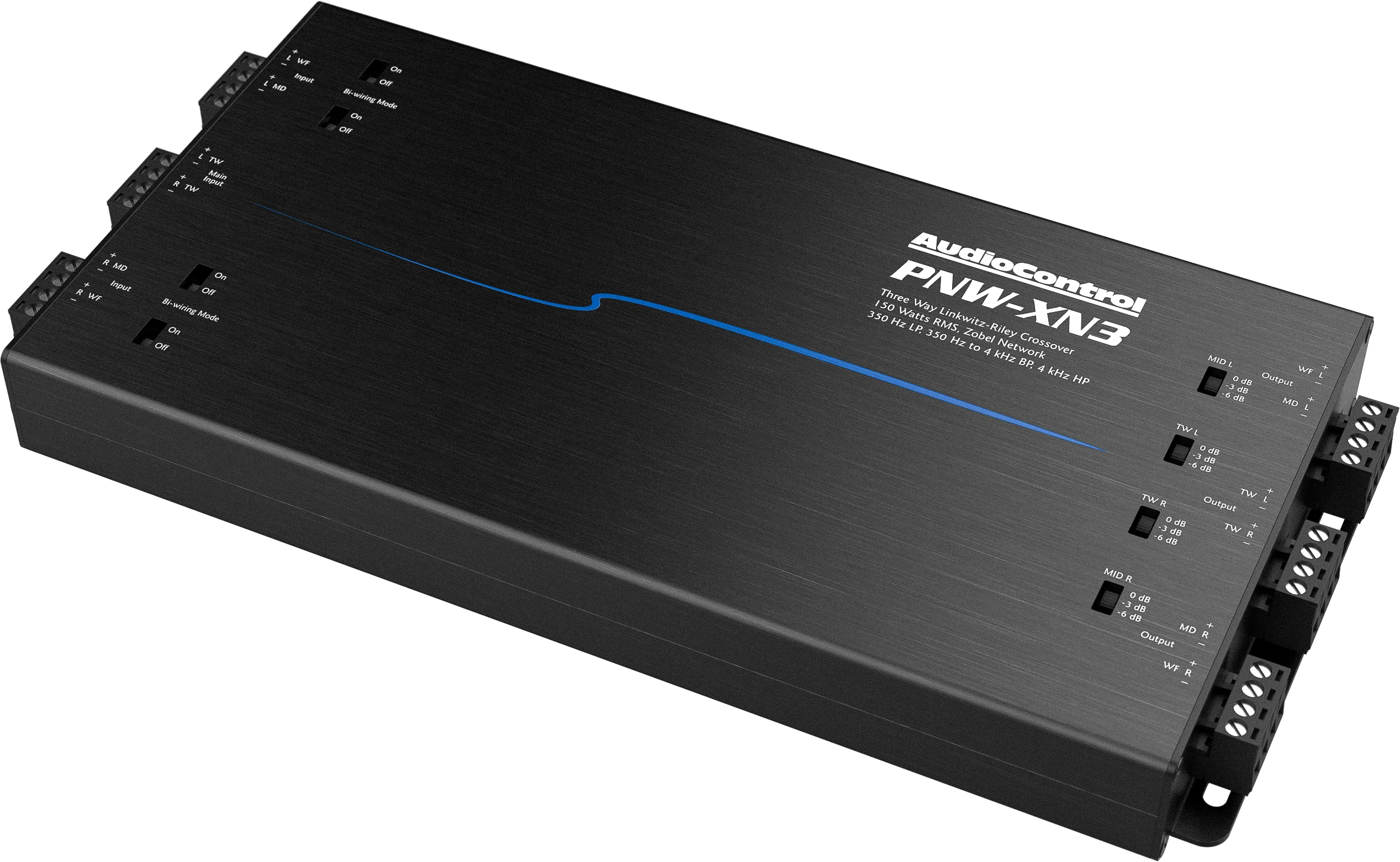

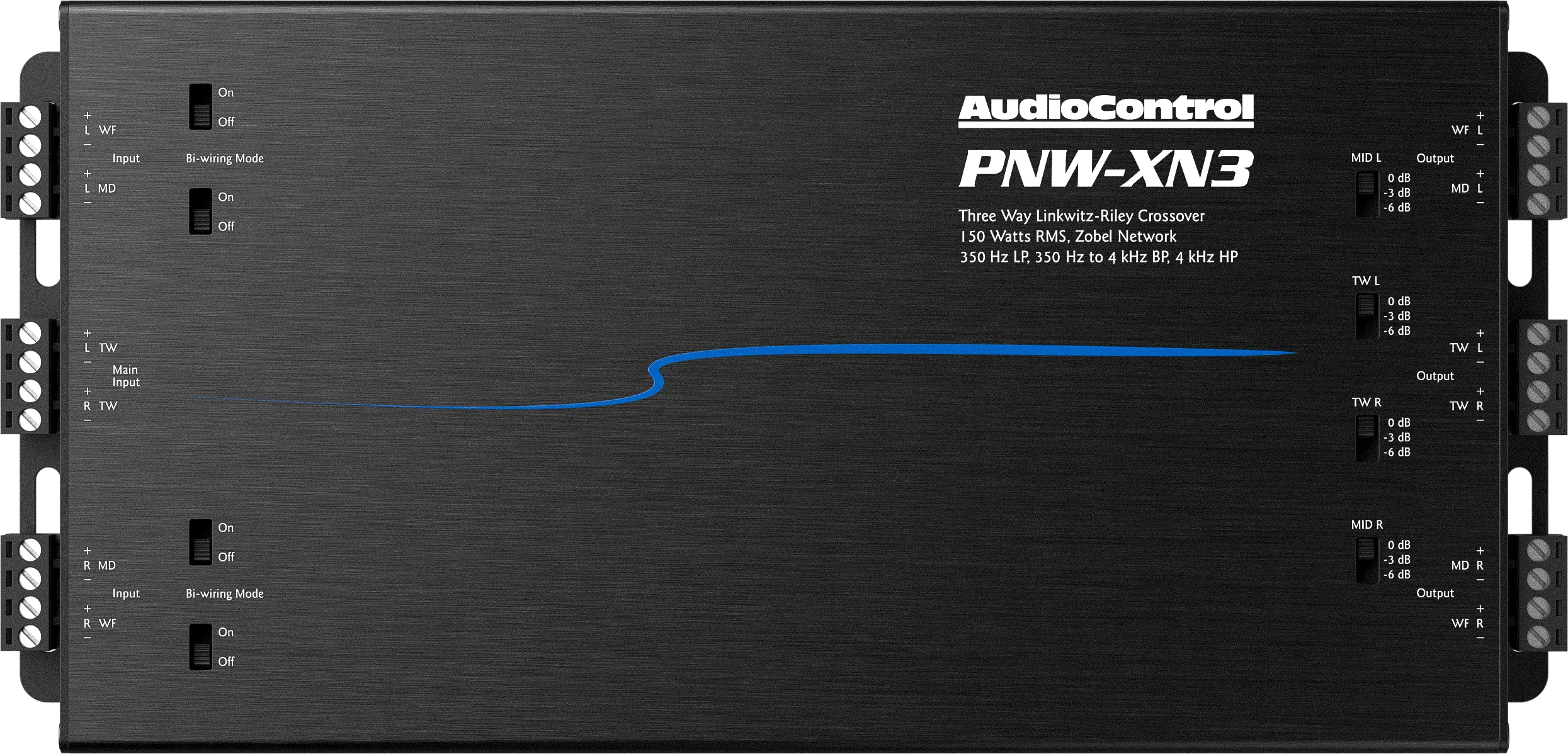

PNW-XN3 3-Way Passive Crossover Network
