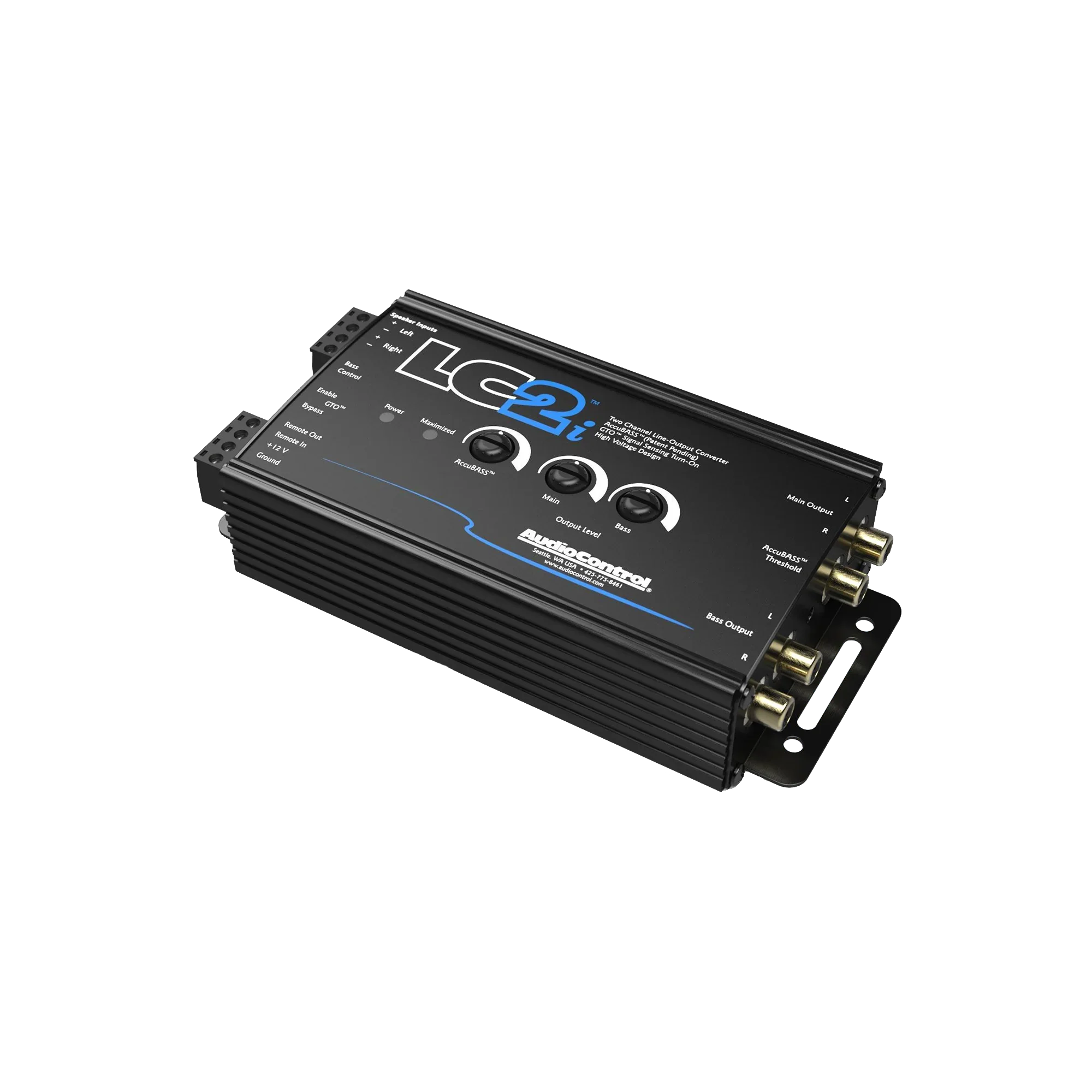

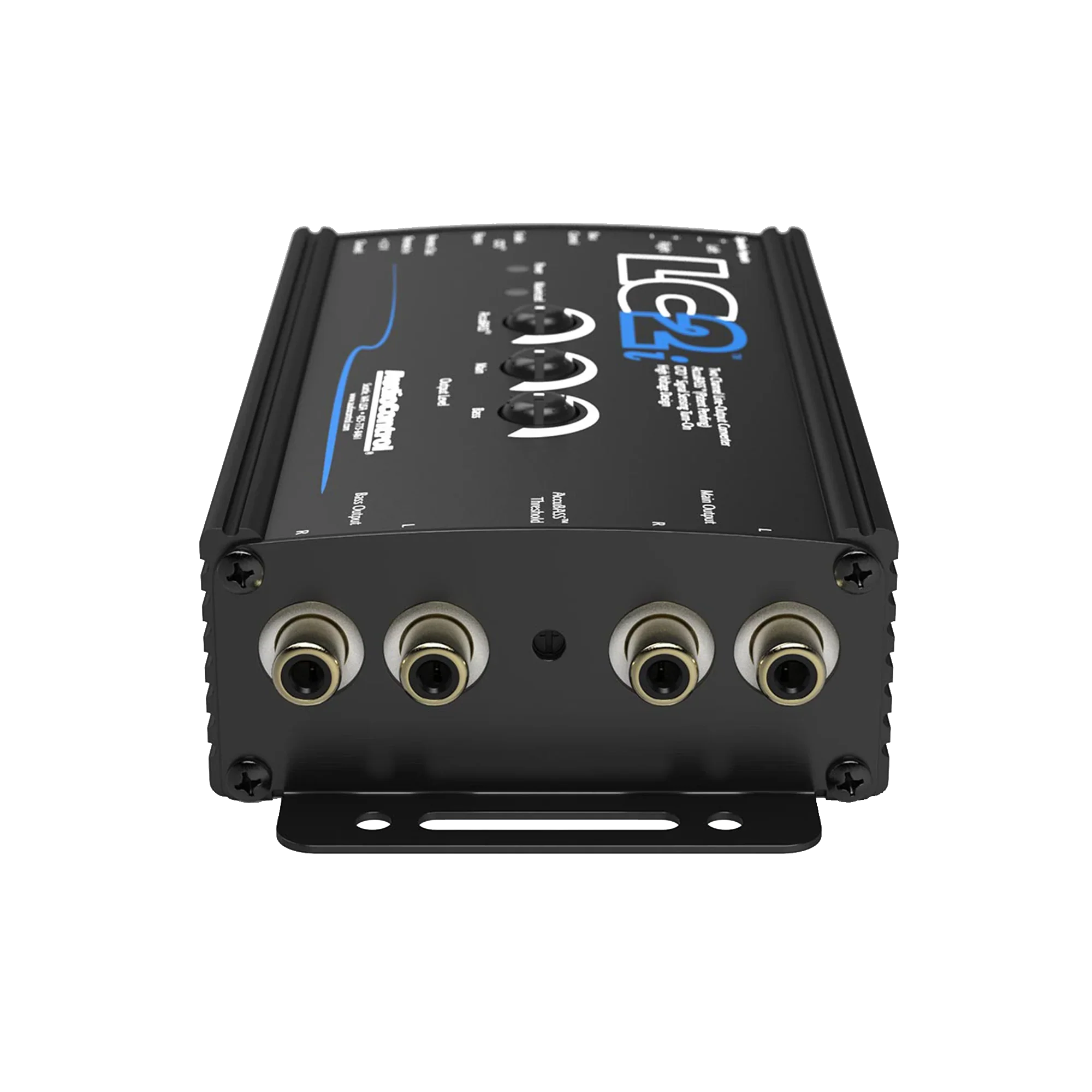

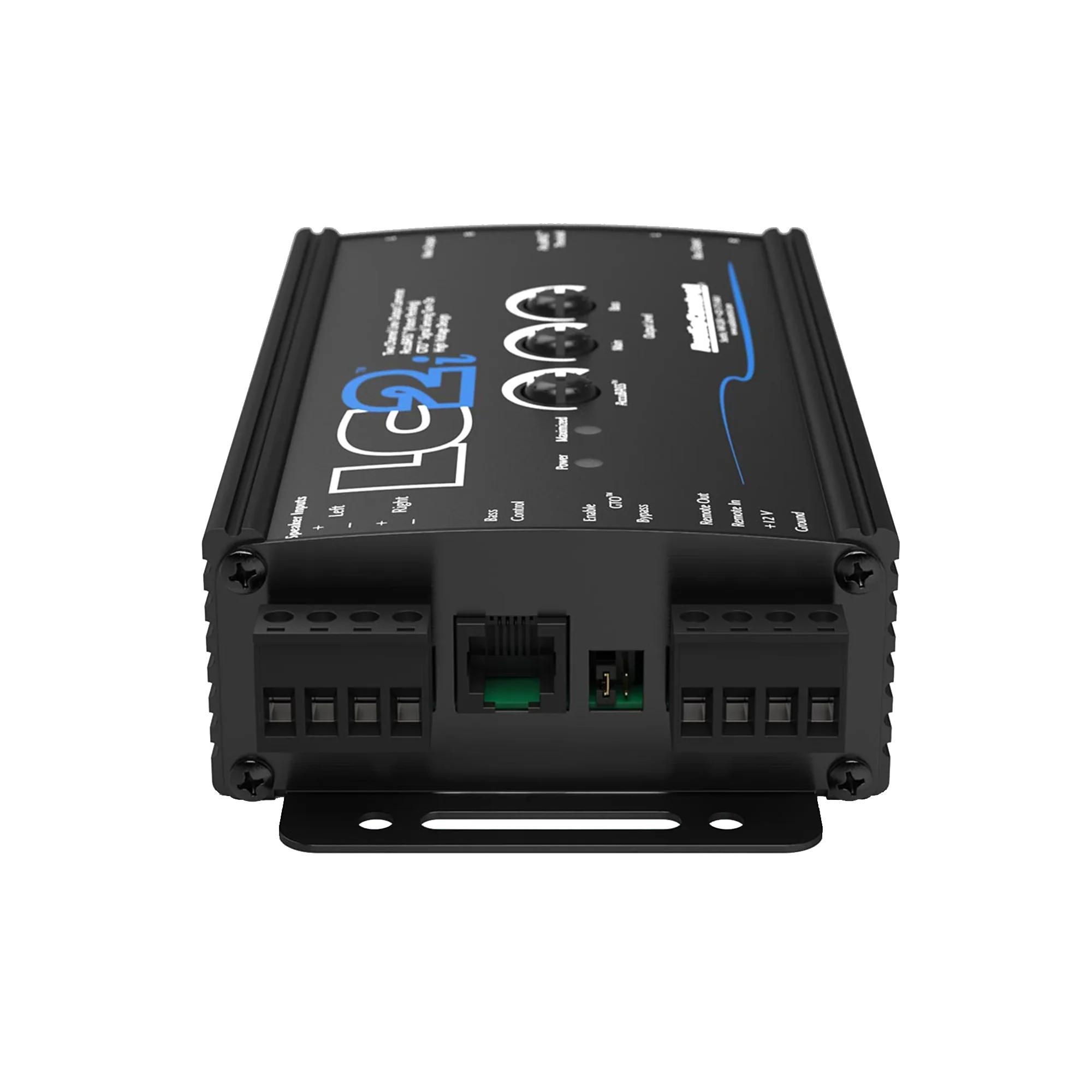

LC2i 2-Channel Line Output Converter w/AccuBASS & ACR-1 Remote
The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. Ā It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.
FEATURES
- Two channels of Active speaker level inputs ā Accepts 400 watt signals per channel
- Fixed and variable outputs with discrete level controls
- AccuBASSĀ® processing for correction of bass roll-off
- GTOTMĀ Signal Sensing
- Input For Optional Remote Level Control
- Compact design
- ACR-1 remote included
SPECIFICATIONS
INPUTS
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 400W per channel at 4Ī©
- Input Impedance: 20kĪ©
OUTPUTS
- Preamp Outputs: 2 (2 channels main, 2 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Impedance: 150Ī©
PERFORMANCE
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 33 Hz ā 100 kHz Ā±1 dB
CONTROL
- Remote In
- 12VDC Remote Out (always active when unit is on)
- ACR-1 Wired Remote Control Included
GENERAL
- Current Draw: 150mA
- Recommended Fuse Rating: 1A
WEIGHTS & DIMENSIONS
- Dimensions: 5.4ā³L x 3.25ā³D x 1.5ā³H (6.5ā³L including mounting brackets)
- Weight: 1.0lbs (0.5kg)
IN THE BOX:Ā LC2i,Ā Speaker and Power connectors, Manual, Warranty
